Automatic ROPP Capping

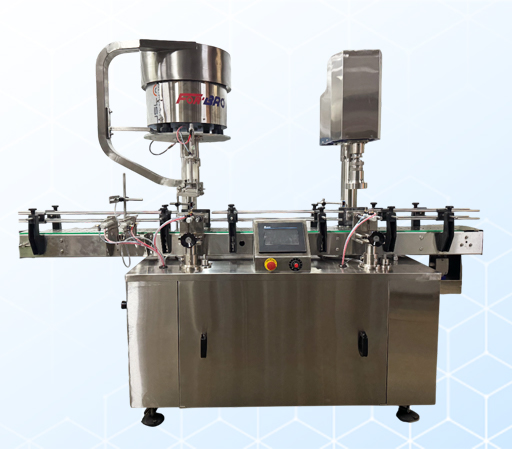

fully automatic sc-40at Capping
PRODUCT DESCRIPTION

For-bro offers complete Automatic capping machines in two variants i.e. Screw type capping and ROPP capping. Screw capping machines are suitable for capping Plastic threaded caps on bottles and jar whereas ROPP capping is best suitable for metal caps on bottle and jar. SC-40AT is a combination of Automatic Capping machine and Rotary turn Table for collection of capped bottles. It makes the overall collection process easy and can be easily integrated with a fully automatic filling lines for liquid, powders, granules or pastes.

Screw type automated capping machines requires cap to be placed in the circular vibratory discharge manually. The machine is designed for a high speed capping. Bottles are fed under the chute of the bowl feeder which places the cap on the top of the bottle and the continuously rotating head will thread the cap and move the bottle on the conveyor belt to the labelling machine or the next stage processing.

ROPP (Roll on Pilfer Proof) capping machine simply put is an unthreaded metal cap that is placed on and pressed down onto the bottle neck while thread forming wheels spin around the cap and press against it to conform to the existing threads of the bottle and locking ring. The big advantage of a ROPP capper is that it is sealing the product at the same time it is providing tamper evident security.

Pre-filled bottles/containers are continuously fed to capping head through conveyor belt. The bottles are then fed in to the star wheel. ROPP caps from the orientation unit automatically feeds caps in correct direction before entering into delivery chute. Once the Bottle is positioned below the rotating capping head, out of 4 rollers, two rollers will Skirt, Spins and Seals the cap and other two roller will provide threading according to bottle neck diameter. Once the Cap is tightly sealed on the bottle , rotating head will automatically release the bottle and which in turn will come out of the star wheel and will be assembled on the rotary table OR can be conveyed to the inspection station Or labelling station.

SALIENT FEATURES

Completely automated operations for high speed capping.

Screw capping and ROPP capping models.

No bottle No cap mechanism.

Supports various sizes of caps with change parts.

Bottle height adjustment for handling various size of Jar/Bottles.

Single motor synchronies conveyor, star wheels and sealing head.

Integrated control panel for ease of operation.

Special guide for small bottles.

Capping Speed

Up to 50 caps/ Min

Capping Speed
Bottle Size

50 mm Diameter

Bottle Size
Power Consumption

0.5 HP

Power Consumption
APPLICATION

Plastic Jar Capping Machine

Plastic Bottle Capping Machine

Metal Cap Capping Machine

Glass Bottle Capping Machine

Metal Bottle Capping Machine

SPECIFICATIONS
SC-40AT
Type Capping with Automatic Line
Capacity Up to 50 mm for Screw caps and up to 30 mm for ROPP caps
Products Plastic cap on Rigid bottles
Operation Mode Automatic Mechanically Oriented and vibratory Bowl Feeder
Bottle Placement Conveyorized
Speed Up to 50 Bottles /Min
Sealing Head Single Head with Changeable coupler for different CAP sizes
Power 1.5 HP Motor with optional variable speed Drive
Gripper (Optional) Pneumatic in-feed and off-take with bottle gripper for small bottles
M.O.C SS 304
Dimension (mm)(LXBXH) 1800 X 700 X 1400
Approx. Net Weight 305 Kgs
Mounting Square tube frame with Polyamide legs
Rotary Table Size 30inch/36 inch
Rotary Table MOC SS 304
Rotary Table Drive 0.25 HP Geared Motor with Variable Speed Drive
