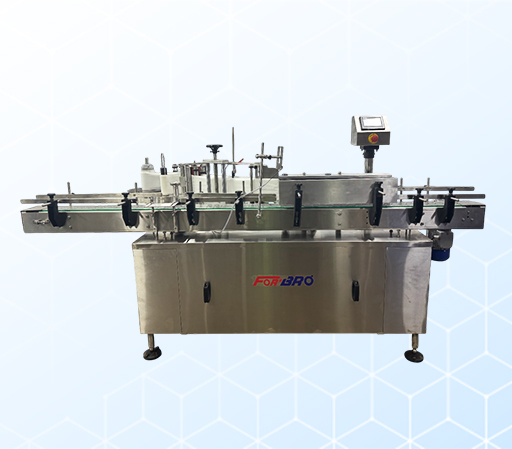

Automatic Round Bottle Labelling Machine

Single head weigh Filler
PRODUCT DESCRIPTION

Labels on the product packaging not only gives the information about the various aspects of the packaged product but also helps the manufacturer to promote the branding. In today’s world of high competition, product manufacturer ensure that their products have their unique labeling. Labeling machines are machines that dispense and apply labels to various items such as Bottles, pet jars, containers and boxes.

We at For-bro offer Semi-automatic and fully automatic labelling machines. Fully Automatic machine is used to automatically apply full or partial labels to the round bottles at very high speed.

Bottles/containers to be labelled are positioned on specially designed conveyor or can be fed from the filling/capping station at a controlled speed on to the labelling station. As soon as the bottle is sensed by the sensor, a label is released from the roll where the self-adhesive label roll is mounted. As the bottles moves on the belt, the label is separated from the adhesive tape and released on the bottle. Rubber Pressure roller is pressed against the stationary roller such that the label is firmly stick to the bottle surface.

We can also provide the batch printing device which can print details such as the batch no, Manufacturing and Expiry date & other matter on label while label is stationary between dispensing of two labels.

SPECIFICATIONS
Item Parameters Specifications
Operation Specification Mode Automatic
Speed Up to 40 per minute
Movement Left to right
Pressing Device Motor 0.25 HP,220V, 50Hz
Unwind Motor Servo 750w Delta / Panasonic make
Bottle Size Max diameter : 100 mm
Label Size 110mm height max
Panel MOC S.S.304
PLC Delta Make
HMI 4.3 inch HMI Delta Make
Physical Specification Size 1800 x 750x 1000mm
Weight 400 kg
Mounting Fixed Anchor Mount
Conveyor MOC SS
Length 1800mm long x 150mm wide
Height 750mm
Chain S.S./UHMWPE Slat chain moving over UHMWPE guides
Bottle Guides 10mm diameter S.S.304 rod guides are mounted on the polyamide brackets
Speed Up to 10 meters/minute
Drive 0.25 HP Hindustan geared motor with variable speed drive
