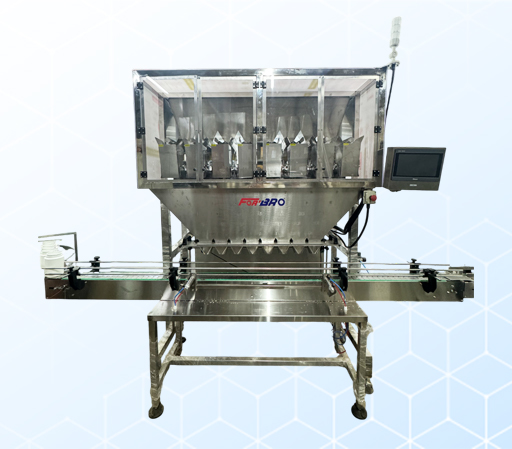

An automatic granular product weight filling machine is designed with two filling channels that funnel into a single fill head, or four filling channels that funnel into a single filling head FOR-BRO Engineers vibratory fillers are the ideal solution for dry granular products that require precision weighing. The vibrating delivery channels that feed product to the load cells avoid damage normally encountered with feed screw or auger systems.
Both Semi-auto or automatic models
Four weighing stations feeding two nozzles or two weighing stations feeding a single nozzle
Tool-less sanitary contact parts
PLC Touch Screen controls
Stainless steel SS 304 contact parts
99 Job recipes
One product hopper per nozzle comes installed on the machine
Each weighing station is fed by an upper and lower level vibrator. The upper vibrator draws product from the storage hopper. The lower level vibrator smooths the product flow maximizing machine accuracy.
220v, single phase
Conveyor up to 6 feet long with SS 304 or chains
Camozzi Make pneumatic indexing system with German make sensors for high precision sensing of bottles and jars
Upto 16 Fills/Min
2 HP
50gms – 1000gms
+/-1%
Whole Spices Filling Machine
Snacks Filling Machine
Screws And Nuts Filling Machine
Wafers And Chips Filling Machine
Confectioneries Filling Machine
Pulses Filling Machine
Grains Filling Machine
Peanut Filling Machine
Tea Filling Machine
Namkeen And Farsan Filling Machine
Sugar Packing Machine
Candies Packing Machine
Seeds Packing Machine
Kurkure Packing Machine
| Item | Parameters | Specifications |
|---|---|---|
| Operational Specifications | Capacity | Up to 1000gms |
| No. Of tracks | Two Track one stage | |
| Control | Load cell controller | |
| Operation Mode | Sensor based for matching operator efficiency. Independent Controls for each track. | |
| Material Feed | 2 nos. Electromagnetic vibrators | |
| Feeding Mode Changeover | Coarse, Fine and Super fine feed changeover and discharge control by electronic controller. Vibration percentage can be assigned to each feeding speed as required for product bulk density and achieving optimum accuracy requirements. | |
| Filling Speed | Up to 10/minute depending upon bulk density and pack size | |
| Filling Modes | Auto Mode | |
| Filling Accuracy | + 1% at constant product level in the machine hopper and consistency of bulk density | |
| Product Feeding | Product feeding to the hopper to be arranged by you | |
| control Panel | MOC | MS powder coated |
| Load Cell | Microprocessor based analog load cell (ADI make) | |
| Vibrator | Vibrator controller for two tracks, one stages of the machine | |
| Input Supply | 1 phase, 230V AC | |
| Valve Actuation | Actuation of solenoid valve and coils through relay | |
| Sensor | Sick or Equivalent | |
| Drive | Vibrator | 2nos, coil:24 ohms |
| Compressed Air | Dry, clean, 100 lpm of compressed air at 7kg/sq.cm controlled pressure to be arranged by you | |
| Physical Specifications | Machine Hopper | 60 liters |
| Weigh Pan | 1000 cc with pneumatically operated flap | |
| MOC | All parts coming in direct contact of the product made from S.S. 304. All other parts made from powder coated MS/CI | |
| Overall Dimensions | Main machine | 900mm x 1200mm x 1800mm |
| Net Weight | 250kgs approx | |
| Mobility | Fixed | |
| Conveyor | Dimension | SS 304, 100mm x 1800mm long |
| Indexing | Pneumatic indexing with no bottle no fill arrangement | |
| Chain | S.S. Slat chain moving over UHMWPE guides | |
| Bottle Guides | 10mm dia S.S. 304 rod guides are mounted on the polyamide brackets | |
| Drive | 0.5 hp geared motor with variable speed drive |
