Volumetric Cup Filler

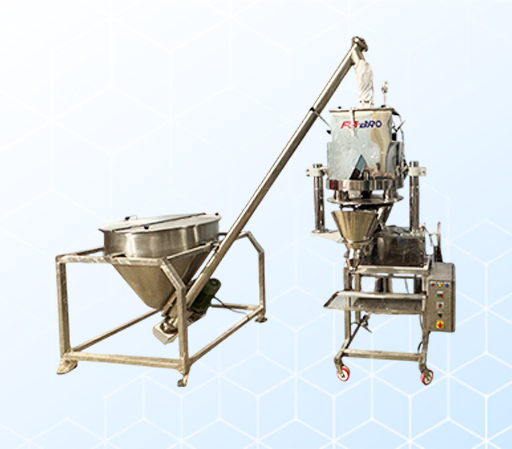

Double Head Cup Filling

dv3t
dv3t
PRODUCT DESCRIPTION

Pioneer in the packaging industry, For-bro offers offer a complete range of Volumetric Cup Fillers for free flowing products. First to conceptualised double discharge, high speed cup filling machine for in Indian industry and revolutionised the packaging process by reducing the overall cost. High speed, Low Maintenance and easy operation not only helped to increase efficiency to the large corporate but also facilitate automation of small scale Agricultural, food and Chemical industries. DV-3T offers high speed filling with 2 heads for material discharge.

SALIENT FEATURES

Economy, Standard, GMP and Servo versions.

In-line Volume adjustment.

Capacity to handle wide range of products and pack sizes.

Easy changeover of product and pack sizes.

Sturdy, simple construction assists maintenance and cleanliness.

Completely mechanical machine for long life.

CUSTOMISATION

Enclosure for dust free operations.

Auto control for multiple discharge in single pack.

Automatic in-feed /off-take conveyorised system.

Economy and standard versions.

Filling Speed

Up to 17 Fills/ Min/Head

Filling Speed
Power Consumption

0.75 HP

Power Consumption
Pack Size

150cc – 1500cc

Pack Size
Accuracy

+/-2%

 Accuracy
APPLICATION

Detergent Filling Machine

Salt Filling Machine

Sugar Filling Machine

Grains Filling Machine

Pulses Filling Machine

Whole Spices Filling machine

Granular Powder Filling Machine

Pesticides Filling Machine

Chemicals Filling Machine

Tea Filling Machine

Fertiliser Filling Machine

SPECIFICATIONS
Parameters DV-3T
Filling Mode Volumetric
Product Characteristics Free flow granular powders
Hopper Capacity 50 litres
Filling Capacity Free flow granular powder from 150 cc - 1500 cc 10gms - 1000gms
Discharge Head/s Two
Speed Up to 34 Fills (17 Fills/Min per Head)
Accuracy +/- 2%
Volume Adjustment Available
Type of pouches/containers Open mouth, stand up, laminated LD, PP, Etc.
Material of Contact SS304 / SS316 (on request)
Power Requirements 0.75HP, 3 Phase
Dimension without frame (mm) 1100 X 850 X 1300
Enclosure Optional
Approximate Weight 300Kg
GMP Model Availability Yes
