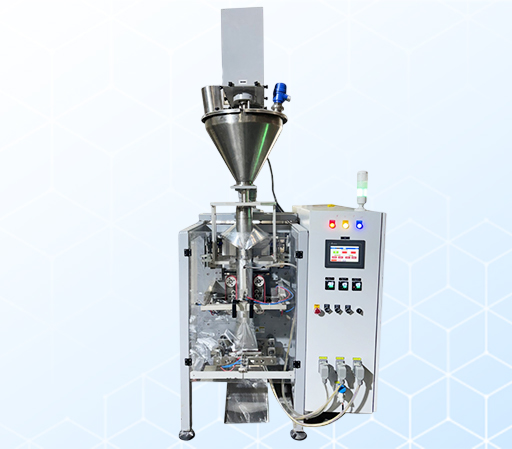

For-Bro offers versatile pneumatic sachet packing machines for chemical, pharma and other powder filling applications in small size unit packs. Auger controller with clutch / brake unit or servo controlled mechanism helps to discharge set quantities of powder in to the 3 or 4 side sealed pillow pouches OR centre seal pouches formed from printed virgin/laminate roll. Photoelectric registration helps in precise print positioning on the pouch. Also available custom design for powder filling machine, chemical powder filling machine, toner powder filling machine, talcum powder filling. Pneumatic sealing helps to achieve a perfect ait tight sealing required for pharmaceutical, food and chemical industry.
Best in class pneumatics for high quality sealing
State of the art design and modular construction
Easy change over of product and pack sizes
PLC / Microprocessor based controls with low powe consumption
Provision for Print mark registraition, Batch coding
Speed may vary depending on the Product type, Pack size and operator skills
For uniform Powder properties operating under the constant head of the product in hopper
All parts coming in direct contact of products. Parts in SS316 can be supplied on request. Other parts in from MS/CI. For GMP Models, parts made in SS304 and/or covered with SS304 Sheets/ENP coated
Clean, dry,compressed air at contolled pressure to be arranged by you.
Ground Spices
Dry Syrup
Premixes
Pharmaceutical Powders
pigments And Dies
Micro Nutrients
| Parameters | SPP-100A | |
|---|---|---|
| Operational Specifications | Capacity | Upto 200gm powder |
| Control | Electromechanical with photoelectric sensor. ( with pneumatic cross seals ) | |
| Packing speed | Upto 15 -30 pouches per minute with single tracks | |
| Pouch formation | With liner former with max size upto 270mm width of laminate. | |
| Pouch type | Three/four side seal, Centre seal | |
| Max pouch size | 125mm x 200mm max. | |
| Vertical seals | Roll pulling and vertical seales with die rollers through electro-magnettc clutch/brake unit | |
| Heaters | Cartridge heaters 250w x 2nos | |
| Horizontal seals | With pneumatic sealing and knife arrangement synrchronised with filling of powder | |
| Heaters | Cartridge heaters 250w x 2nos | |
| Dozer | Auger filler | |
| Dozer hopper | 35 litres capacity | |
| Filling accuracy | ± 2% for at consistant product bulk density | |
| Control panel | MOC | M.S Body/SS Body on Request |
| Controller | Solid state electronic controller with photoelectric
sensor for print mark registration.PLC Based controls Digital time proportional temperature controller Auger controller with photoelectric sensor |
|
| Drive | Motors | 0. 5 h.p. Single phase . For main machine
(variable speed drive optional) 0.75 H.P for Auger filler |
| Physical Specificaions | MOC | SS304 / SS316 (on request) |
| Overall Dimenisions | Main machine | 675mm x1000mm x 2600mm ( l x w x h ) |
| Net weight | 700kgs approx | |
| Mobility | Provided with castor wheels |
